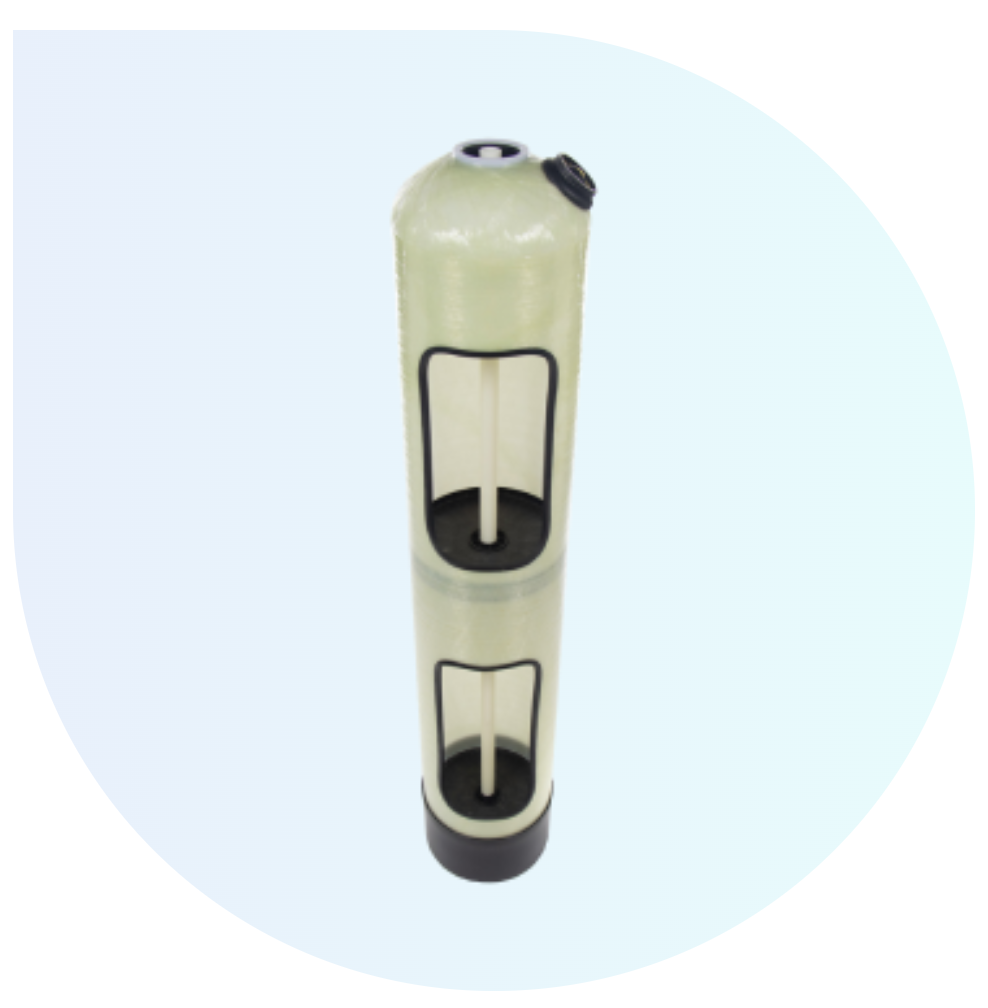

Plated Mineral Tanks

FOR STANDARD RESIN SYSTEMS
OR FILTER SYSTEMS

Clack Plated Mineral Tanks are made of high-density polyethylene (HDPE) plastic with composite fiberglass filament winding over the liner. Clack’s design provides a glass-filled polypropylene inlet for higher strength and pressure capabilities.

FEATURES

  • Uniformity of .010 – .013 slot size for reduced pressure drop
  • Uniform flow in both downflow and upflow brining
  • Laser-welded mid plate
  • Eliminates the need for a gravel support bed
  • The diameter of both the bottom and mid plates is equivalent to the diameter of the tank, maximizing distribution through the entire media bed
  • Brine pick-up is directly from the bottom of the tank
  • Distributor riser tube with lock feature threads securely into the bottom plate
  • Distributor riser tube is removable, but not to be reused due to lock mechanism being compromised. No special tools are needed to insert or remove distributor riser tube. No solvent used to assemble it.
  • All mineral tank liners are air tested before winding

CERTIFIED TO
NSF/ANSI 44
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372

MADE IN THE USA

Download Icon

Plated Mineral Tanks Brochure
Plated Mineral Tanks
SPECIFICATIONS
Material of ConstructionHigh-density polyethylene (HDPE) plastic with composite fiberglass filament, glass-filled polypropylene inlet
, Distributor plates: glass-reinforced plastic
Warranty10 years
