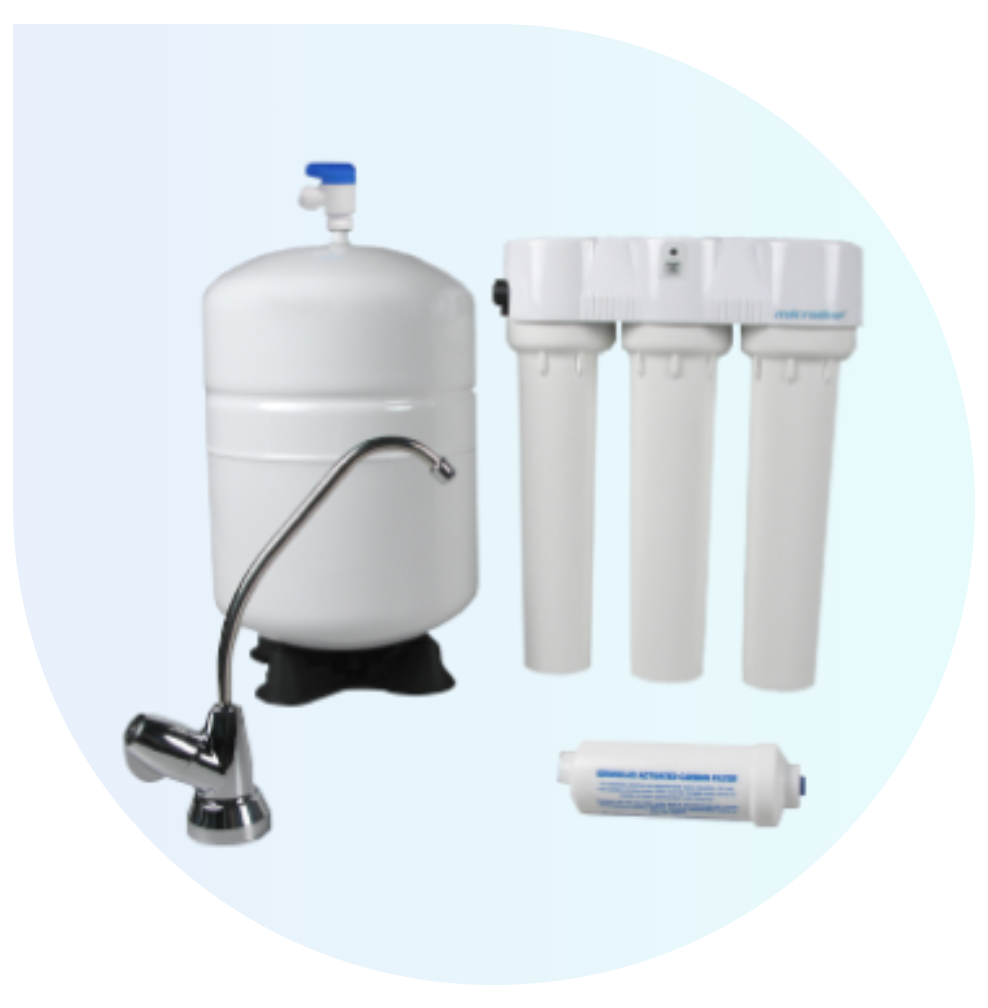

Microline® T.F.C. 435

Clack offers a comprehensive portfolio of drinking water products, including the trusted Microline® systems. Designed with an innovative manifold configuration, these systems minimize tubing connections for easier installation and long-term reliability. Customers can choose from reverse osmosis (R.O.) units or multi-stage filtration systems that incorporate ceramic elements and other advanced filter technologies.

Multi-Stage Purification Process

Each Microline system is built to deliver consistently clean, great-tasting water:

  • Sediment/Carbon Prefilter – Captures dirt and debris while reducing chlorine to extend membrane life.

  • Thin Film Composite (T.F.C.) Membrane – The core of the system, reducing dissolved solids and a wide range of impurities.

  • Activated Carbon Filtration – Provides extended contact time for further contaminant reduction.

  • Final Inline Carbon Polish – Removes residual tastes and odors before the water is dispensed.

Designed with Everyday Use in Mind

  • Exclusive Manifold Plate – Patented channel design simplifies servicing and installation.

  • Compact, Undersink Footprint – Saves space while storing up to 2 gallons of treated water.

  • Automatic Shut-Off – Conserves water by pausing production until the tank requires refilling.

  • High Output Membrane – Produces up to 50 gallons (189 liters) of purified water per day.

  • Optional Monitoring – A push-button water quality monitor is available for simple system checks.

Download Icon

Microline T.F.C. 435 Brochure

FEATURES

  • Refreshing Taste – Enjoy pure, crystal-clear water straight from your tap.

  • At Your Fingertips – Always have clean, filtered water available when you need it.

  • Better Beverages – Experience richer flavors in your coffee, tea, and juices.

  • Aquarium Ready – Provide your fish with water that supports a healthier environment.

  • Produce-Friendly – Rinse fruits and vegetables with clean water for fresher results.

  • Crystal Ice – Make ice cubes that are harder, clearer, and more appealing.

  • Appliance Protection – Extend the lifespan of steam irons and humidifiers with scale-free water.

  • Shine Without Spots – Glassware and dishes rinse streak-free with R.O. water.

  • Save Money – Cut out the ongoing expense of bottled water.

  • Elevated Cooking – Soups, sauces, and recipes taste better with high-quality water.

  • Eco-Conscious Choice – Fresh water without chemicals or plastic waste.

  • Pet Approved – Give your pets the same clean, safe water your family enjoys.

Tested and Certified by NSF International against NSF/ANSI Standard 58 for the reduction of: Arsenic (Pentavalent), Barium, Cadmium, Chromium (Hexavalent), Chromium (Trivalent), Copper, Fluoride, Lead, Nitrate, Nitrite, Radium 226/228, Selenium and TDS.

If you have a Microline RO System and need parts or service, please visit our Service Center website.

MADE IN THE USA

Microline TFC 435
PERFORMANCE SPECIFICATIONS
PrefilterSediment/Carbon Filter
MembraneThin Film Composite (T.F.C.)
PRIMARY ASSEMBLY COMPONENTS
Membrane Production/Rating*41-53 gallons per day (155-201 lpd)
Membrane T.D.S. Reduction/Rating*96% minimum
System Production/Rating**produces 11 gpd (41 lpd)
System Average T.D.S./Reduction**94%
INCOMING WATER SPECIFICATIONS
Water Pressure40-100 psi (280-690 kPa)
Total Dissolved Solids (T.D.S.)2000 ppm (mg/l) maximum
Water Temperature40˚-100˚F (4˚-38˚C)
pH4-11 Optimum rejection at pH 7.0 - 7.5)
Hardnessless than 10 mpg (170 mg/l) or soften
Ironless than 0.1 com (mg/l)
Manganeseless than 0.05 ppm (mg/l)
Chlorine***see note below
Baceria****water source must be potable

* Measured at industry standard condition of 65 psig (448 kPa), 77°F (25°C), 250 ppm (mg/l) T.D.S., and discharging to atmosphere.
** Actual capacity measured at 50 psig (345 kPa), 77°± 2° F (24°- 26° C), and 750 ± 40 ppm (mg/l) TDS per section 6 of NSF/ANSI Standard 58 product water to pressurized storage tank.
*** 3 Chlorine will damage a T.F.C. Membrane. The Sediment/Carbon Prefilter Cartridge is designed to reduce chlorine from the incoming water. Change cartridge every 6 to 12 months, more often if the water contains more than 1 ppm chlorine.
**** Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system.
