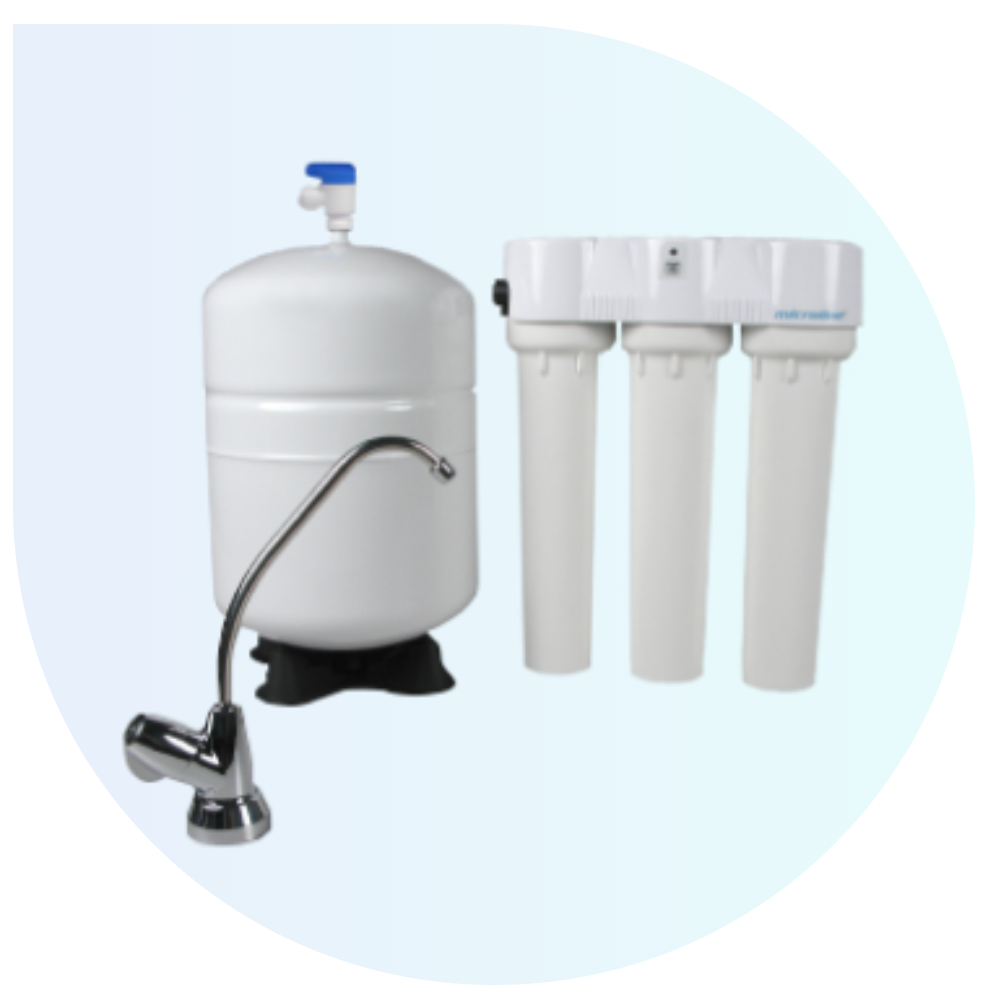

Microline® T.F.C. 335

Clack manufactures an extensive line of drinking water products, including Microline® drinking water systems. Microline drinking water systems utilize a patented manifold design. Microline systems are available as reverse osmosis units or multiple-stage filtration systems, which use ceramic elements and other filter technologies.

Three High Performance Filtration Stages:

  • The Sediment/Carbon Prefilter protects the automatic shut–off and Membrane from clogging with debris, and is also designed to reduce chlorine, to protect the refined T.F.C. Membrane.
  • Reverse Osmosis. This is the heart of the system. The T.F.C. Membrane substantially reduces dissolved solids and other unwanted impurities (specified on the performance data sheet) from the water stream.
  • The final stage of filtration, an Activated Carbon Filter, reduces any remaining tastes and odors before the water reaches your glass, adding a final “polish” to your filtered water.

State-Of-The-Art Features:

  • Patented Design: Exclusive manifold plate with patented channel design reduces tubing connections and simplifies installation.
  • High-Capacity Tank: Holds approximately 2 gallons of water without taking up a lot of space.
  • Compact System: Space-saving design is ideal for undersink installations and uses a minimum of space.
  • Automatic Shut-Off: Signals the system to stop making water until more is needed.
  • Maximum Production: High-performance T.F.C. Membrane with a rating of 50 gallons per day (189 liters per day).
  • Optional Water Quality Monitor: An optional Water Quality Monitor allows you to ensure your system is working by simply pushing a button.
Download Icon

Microline T.F.C. 335 Brochure

FEATURES

  • Delicious, sparkling-clear drinking water
  • Convenience: Fresh, clean water ready at your faucet
  • Pristine, flavorful coffee, tea, and juice
  • Quality water for your aquarium
  • Cleanly rinsed fresh fruits and vegetables
  • Crystalline, harder, and clearer ice cubes
  • Prolong the life of your humidifier or steam iron
  • Spotless glassware when rinsed with R.O. water
  • Cost-effective: No more bottled water costs
  • Better tasting soups, sauces, and meals
  • Environmentally sound: No chemicals
  • Great for your pets

Tested and Certified by NSF International against NSF/ANSI Standard 58 for the reduction of: Arsenic (Pentavalent), Barium, Cadmium, Chromium (Hexavalent), Chromium (Trivalent), Copper, Fluoride, Lead, Nitrate, Nitrite, Radium 226/228, Selenium and TDS.

If you have a Microline RO System and need parts or service, please visit our Service Center website.

MADE IN THE USA

Microline TFC 335
PERFORMANCE SPECIFICATIONS
PrefilterSediment/Carbon Filter
MembraneThin Film Composite (T.F.C.)
Post FilterActivated Carbon Filter
PRIMARY ASSEMBLY COMPONENTS
Membrane Production/Rating*41-53 gallons per day (155-201 lpd)
Membrane T.D.S. Reduction/Rating*96% minimum
System Production/Rating**produces 11 gpd (41 lpd)
System Average T.D.S./Reduction**94%
INCOMING WATER SPECIFICATIONS
Water Pressure40-100 psi (280-690 kPa)
Total Dissolved Solids (T.D.S.)2000 ppm (mg/l) maximum
Water Temperature40˚-100˚F (4˚-38˚C)
pH4-11 Optimum rejection at pH 7.0 - 7.5)
Hardnessless than 10 mpg (170 mg/l) or soften
Ironless than 0.1 com (mg/l)
Manganeseless than 0.05 ppm (mg/l)
Hydrogen Sulfidenone
Chlorine***see note below
Baceria****water source must be potable

* Measured at industry standard condition of 65 psig (448 kPa), 77°F (25°C), 250 ppm (mg/l) T.D.S., and discharging to atmosphere.
** Actual capacity measured at 50 psig (345 kPa), 77°± 2° F (24°- 26° C), and 750 ± 40 ppm (mg/l) TDS per section 6 of NSF/ANSI Standard 58 product water to pressurized storage tank.
*** 3 Chlorine will damage a T.F.C. Membrane. The Sediment/Carbon Prefilter Cartridge is designed to reduce chlorine from the incoming water. Change cartridge every 6 to 12 months, more often if the water contains more than 1 ppm chlorine.
**** Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system.
