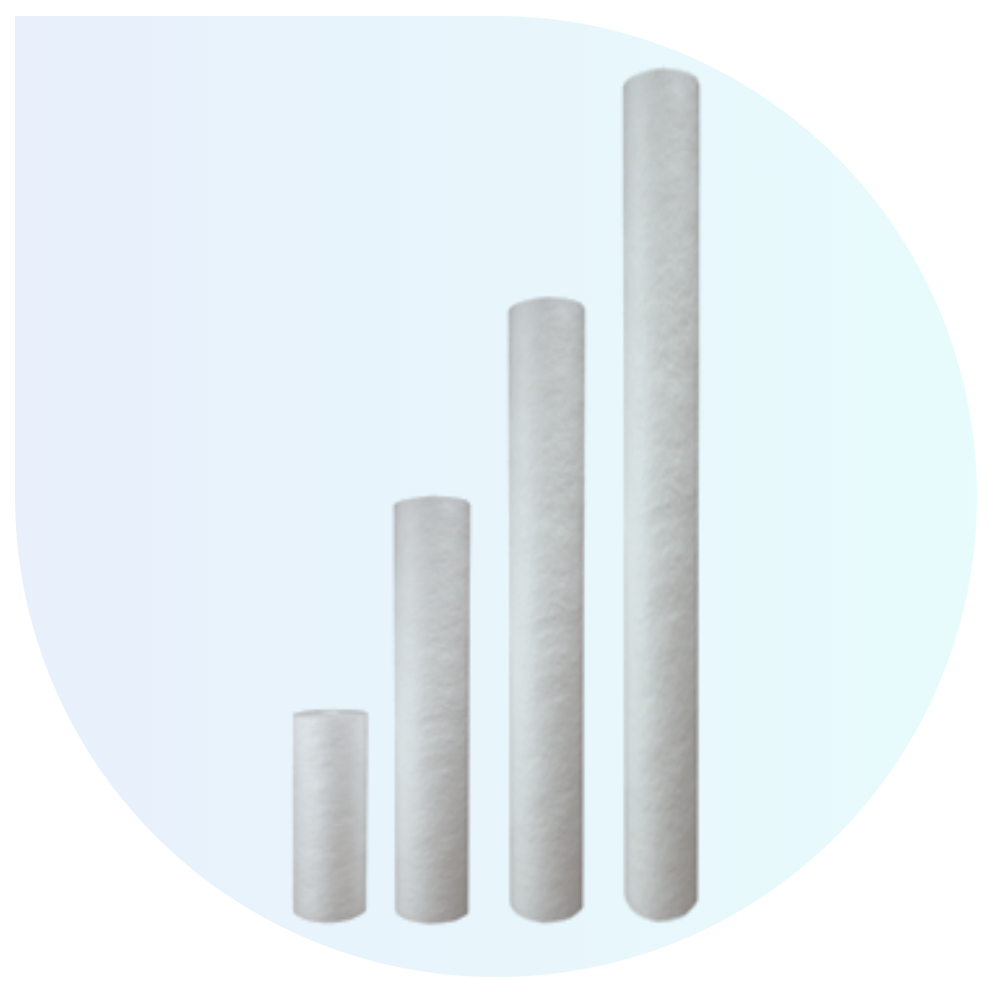

2.5" Diameter Melt-Blown Sediment Filters
As a depth filter, HydroCure® sediment cartridges trap particles throughout the entire cross-section of the filter. Larger particles are trapped on or near the surface of the filter and the smaller particles are trapped throughout the inner layers of the cartridge. The gradient density design allows for optimum dirt holding capacity and minimal change-outs.
Hydro-Cure® melt-blown filter cartridges are made of polypropylene resin meeting FDA regulation 21CFR177.1520. No binders, lubricants or antistatic agents are used in our manufacturing process. Clack melt-blown polypropylene filters have been tested and certified under NSF/ANSI Standard 42 for material requirements only. The inert polypropylene resin provides exceptional chemical compatibility to handle a wide range of process fluids.
Hydro-Cure® cartridges are designed for knife-edge seal housings to provide a positive seal without the use of end caps or gaskets. Hydro-Cure® cartridges are interchangeable with most standard pleated, string-wound wound and other melt-blown cartridges.
Hydro-Cure® is a federally registered trademark of Clack Corporation.
MADE IN THE USA
FEATURES
- Hydro-Cure® cartridges are designed to provide high flow rates with minimum pressure drop
- Flow rates of up to 5 gpm per 10” length are recommended and should not exceed 10 gpm per 10” length for optimal efficiency
- The maximum operating temperature is 125°F (52°C)
- Hydro-Cure® filters are available in 1, 5, 25 and 50 micron ratings and will fit most standard filter housings
- Standard filter lengths of 9 7 ⁄8”, 20”, 30”, 40”, and 50″ are available
- Cartridges are individually shrink-wrapped and labeled
- Hydro-Cure® sediment filters have the micron rating embossed on the side of every cartridge for easy identification
| Physical Properties |
Standard Filter Length 9 7/8 " (25.1 cm) |
Standard Filter Length: 20" (50.8 cm) |
Standard Filter Length: 30" (76.2 cm) |
Standard Filter Length: 40" (101.6 cm) |
Standard Filter Length: 50" (127.0 cm) |
|---|---|---|---|---|---|
| Filter I.D. | 1 1 ⁄16" (2.7 cm) | 1 1 ⁄16" (2.7 cm) | 1 1 ⁄16" (2.7 cm) | 1 1 ⁄16" (2.7 cm) | 1 1 ⁄16" (2.7 cm) |
| Filter O.D. | 2 1 ⁄2" (2.7 cm) | 2 1 ⁄2" (2.7 cm) | 2 1 ⁄2" (2.7 cm) | 2 1 ⁄2" (2.7 cm) | 2 1 ⁄2" (2.7 cm) |
| Number of Cartridges Per Carton | 24 | 25 | 15 | 15 | 15 |
| Number of Cartridges Per Pallet | 1,512 | 900 | 480 | 360 | 240 |
| Nominal Micron Ratings | 1, 5, 25, 50 | 1, 5, 25, 50 | 1, 5, 25, 50 | 1, 5, 25, 50 | 1, 5, 25, 50 |
* Micron rating is nominal. Installation and housing design can affect performance.
Hydro-Cure® melt-blown polypropylene filters are designed for sediment reduction from potable water.
These filters will not remove cysts, bacteria, or viruses.
