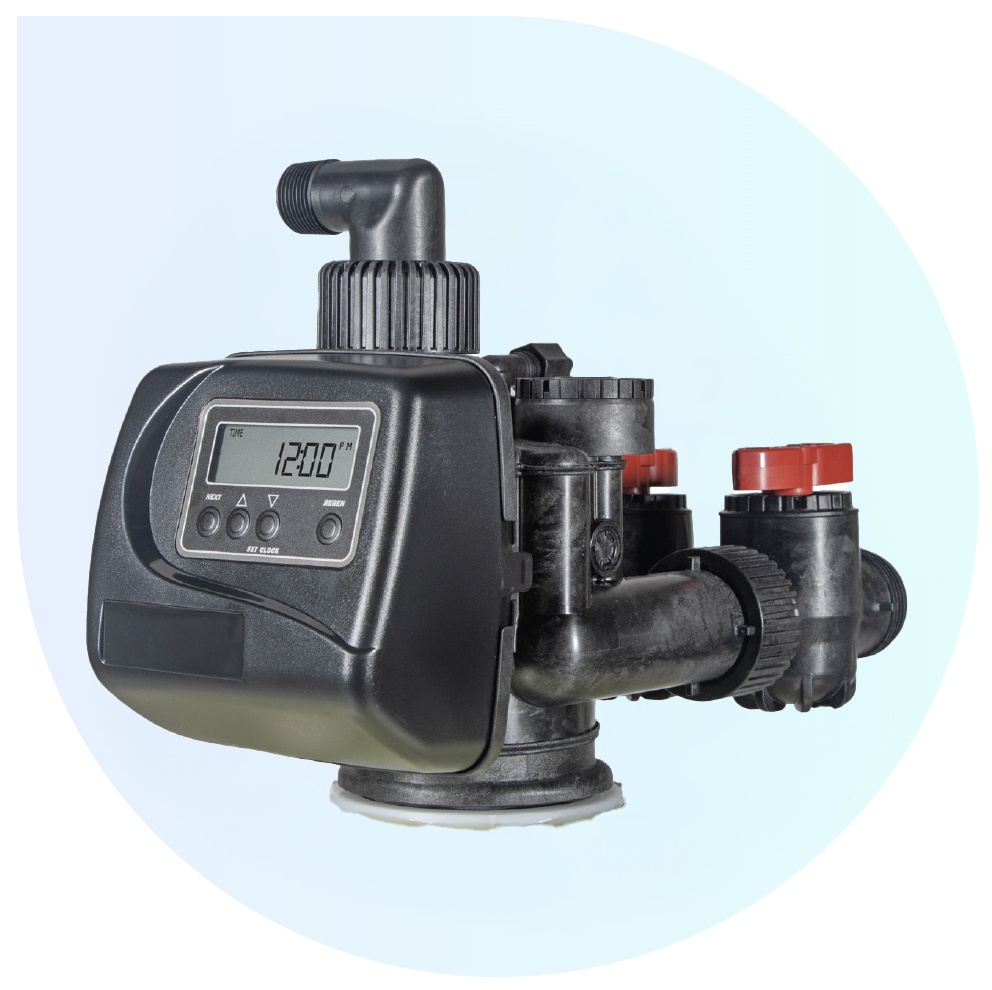

WS1.5BP Water Specialist Valve
CERTIFIED TO
NSF/ANSI/CAN 61 and 372 (pending)
All Clack Control Valves are designed, assembled, air tested, and water tested in Wisconsin, USA.
COMPATIBLE WITH THE FOLLOWING TYPICAL CONCENTRATION OF REGENERANTS OR CHEMICALS
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
WS1.5BP Control Valve Spec Sheet
FEATURES AND BENEFITS
- 1.5" top-mount control valve suited for mid-size commercial/industrial applications
- Glass-filled composite
- Economical glass-filled composite optional meter assembly
- Service flow rate of 48 gpm, backwash 43 gpm
- Upflow/downflow brining field convertible
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin cell lithium battery backup for a time of day up to 8 hours
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post-treated water regenerant refill
- Days override feature; 1 – 28 days available
- One-piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
- Reliable and proven DC drive
SPECIFICATIONS
| GENERAL | |
|---|---|
| Inlet/Outlet Connections | 1.5" Male NPT |
| Cycles | up to 6 |
| Valve Material | Glass-filled composite |
| Regeneration | Downflow/upflow |
| Operating Pressures Minimum/Maximum | 20 psi - 125 psi |
| Operating Temperatures Minimum/Maximum | 40º - 110ºF (4º - 43º C) |
| Options | Backwash Filter, Weather Cover |
| Flow Rates | |
|---|---|
| Service @15 psi drop(includes meter) | 48 gpm |
| Backwash @25 psi drop | 43 gpm |
| TANK APPLICATIONS | |
|---|---|
| Water Softener | 12" - 24" diameter |
| Water Filter | 12" - 24" diameter |
| DIMENSIONS & WEIGHT | |
|---|---|
| Distributor Pilot ValveBodies with 1.5" Female NPT Inlet & Outlet | 1.90" OD (1.5" NPS) |
| Drain Line Connection | 1” Male NPT Elbow |
| Brine Line Adapters Included | ½" OD Poly Tube Compression |
| Mounting Base | 4" - 8 UN |
| Height From Top Of Tank | 10.75" |
| Shipping Weight with Meter | 9 lbs. |
|
CYCLES OF OPERATION Minutes | |
|---|---|
| Backwash 1st (upflow) | 1 - 95 Softener Backwash 1 - 95 Filter |
| Regenerate Draw/Slow Rinse (downflow) | 1 - 180 |
| Backwash 2nd (upflow) | 1 - 95 |
| Fast Rinse (downflow) | 1 - 95 Softener Rinse 1 - 95 Filter |
| Regenerate Refill (in service with treated water) | 0.1 - 99.0 or OFF |
|
ELECTRICAL SPECIFICATIONS All models excluding WS1.25SD | US Power Supply | International Power Supply |
|---|---|---|
| Supply Voltage | 100VAC to 120VAC | 200VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
