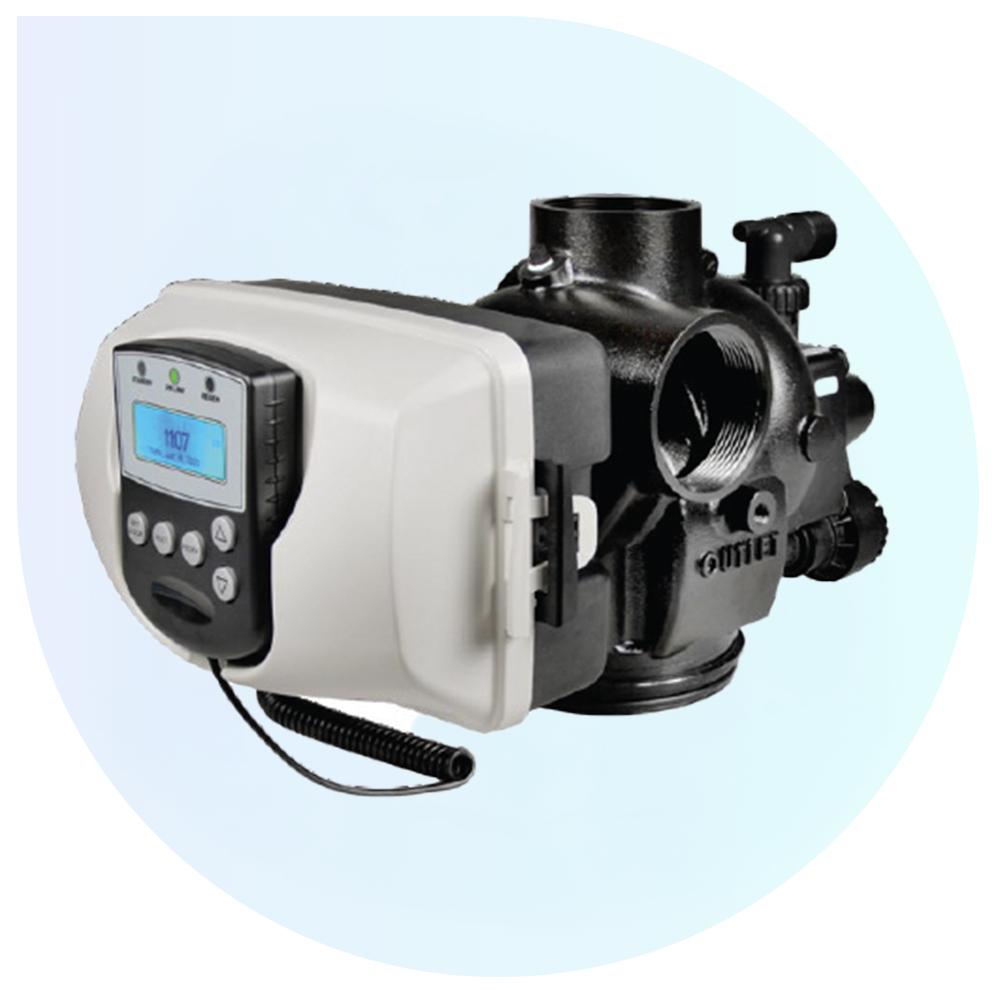

WS3 Water Specialist Valve
CERTIFIED TO
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
All Clack Control Valves are designed, assembled, air tested, and water tested in Wisconsin, USA.
COMPATIBLE WITH THE FOLLOWING TYPICAL CONCENTRATION OF REGENERANTS OR CHEMICALS
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
WS3 Control Valve Spec Sheet
FEATURES AND BENEFITS
- Control Valve Flow Rates: Service 250 gpm (946 lpm) (56.8 m3/h) Backwash 220 gpm (833 lpm) (50.0 m3/h)
- Epoxy-coated lead-free brass valve body
- Fully programmable regeneration cycle times and sequences (maximum 9)
- Network up to 16 valves using Cat5 cable or better
- Methods to initiate regeneration: Meter Delayed, Meter Immediate, Time Clock Delay, Remote Input
- Add up to 2 relay expansion boards to the circuit board (sold separately)
- Top-mount or side-mount capabilities for commercial and industrial applications
- Programmable System types: Alternating, Progressive Flow, Series, Single
- Days override feature; 1-28 days or day/s of the week
- Blue backlight front display shows: Time and Date, Current Flow Rate, Volume Used, Volume Remaining, Days Remaining
- Diagnostics and history viewing
- Modbus RS485 duplex to communicate with building automation systems
- Remote circuit board software update capability
- Reliable and proven DC drive
- One-piece expanding seal spacer stack assembly
SPECIFICATIONS
| GENERAL | |
|---|---|
| Inlet/Outlet Fitting Connections | 3" Female NPT or BSPT |
| Cycles | up tp 9 |
| Valve Material | Lead-free brass |
| Regeneration | Downflow |
| Operating Pressures | 20 psi - 125 psi (1.4 - 8.6 bar) |
| Operating Temperatures | 40˚ - 110˚F (4˚ - 43˚C) |
| Options | Backwash Filter |
| Flow Rates | |
|---|---|
| Service @15 psi drop | 250 gpm (946 lpm) (56.8 m3 /h) |
| Backwash @25 psi drop | 220 gpm (833 lpm) (50.0 m3 /h) |
| CV Service | 64.6 |
| CV Backwash | 44.0 |
| TANK APPLICATIONS | |
|---|---|
| Water Softener | 18” - 63" diameter |
| Water Filter | 18” - 63" diameter |
| DIMENSIONS & WEIGHT | |
|---|---|
| Distributor Pilot | 18” - 48" diameter |
| Drain Line | 3” Female NPT/BSPT "No Groove Lock" |
| Brine Line | 1” Male NPT elbow ¾” x 1” solvent weld elbow |
| Mounting Base | 6” Flange or Side Mount |
| Height From Top of Tank | 6" Flange QC Base - 12.5” (318mm) |
| Weight | 57 lbs (25.9 Kg) |
|
CYCLES OF OPERATION Minutes | |
|---|---|
| Backwash 1st (upflow) | 1 - 95 |
| Regenerate Draw/Slow Rinse (downflow) | 1 - 180/1 - 95 |
| Fast Rinse (downflow) | 1 - 95 |
| Regenerant Refill in service with treated water | 1 - 480 |
| Hold (service) | 1 - 480 |
| ELECTRICAL SPECIFICATIONS | US Power Supply | International Power Supply |
|---|---|---|
| Supply Voltage | 120VAC | 240VAC |
| Supply Frequency | 60 Hz | 50/60 Hz |
| Output Voltage | 24VDC | 24VDC |
| Output Current | 800 mA | 800 mA |
