Certified to
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
Compatible with the following typical concentrations of regenerants or chemicals
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
Made in The USA
Models & features
Specification sheet

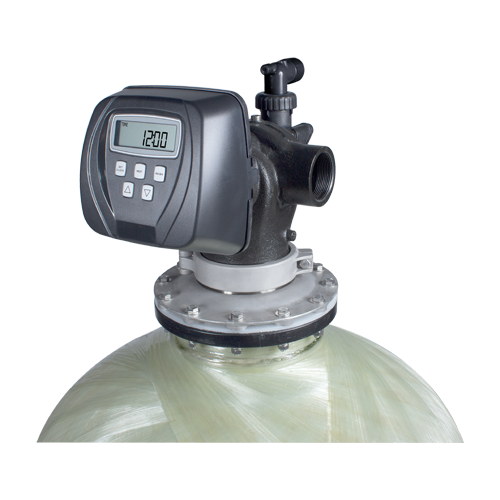

WS2CI/QC Specification sheetFeatures and Benefits
- 2” top mount or side mount control valve suited for commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical stainless steel optional meter assembly
- Service flow rate of 473 lpm (28.4 m3/h) (125 gpm), backwash 322 lpm (19.3 m3/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1-28 days available
- Coin Cell Lithium battery back-up with an 24 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Pre or Post treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

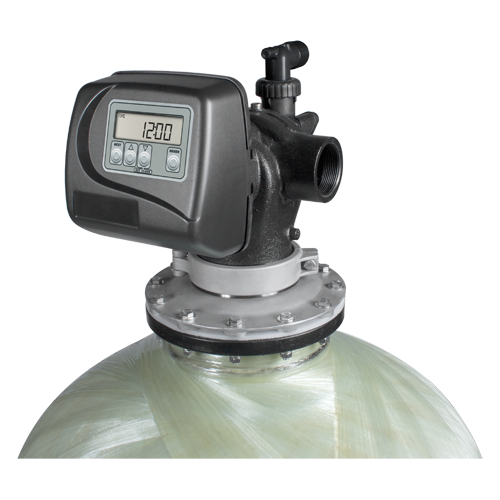

WS2EI/QC Specification sheetFeatures and Benefits
- • 2” top mount or side mount control valve suited for commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical stainless steel optional meter assembly
- Service flow rate of 473 lpm (28.4 m3/h) (125 gpm), backwash 322 lpm (19.3 m3/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability
and efficiency - Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

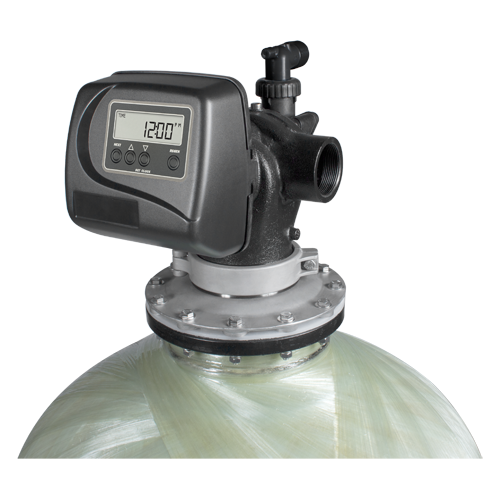

WS2EE/QC Specification sheetFeatures and Benefits
- 2” top mount or side mount control valve suited for commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical stainless steel optional meter assembly
- Service flow rate of 125 gpm, backwash 85 gpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

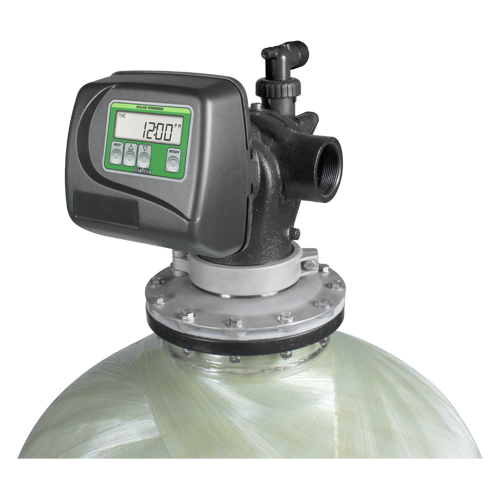

WS2SP/QC Specification sheetFeatures and Benefits
- Solar panel or DC power supply recharges 6 “AA” re-chargable Nickel Metal Hydride Batteries
- Can be programmed for automatic variable reserve, based on water usage history for high efficency
- 2” top mount or side mount control valve suited for commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical stainless steel optional meter assembly
- Service flow rate of 125 gpm, backwash 85 gpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- The optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Downflow regeneration/Upflow regeneration
- Coin Cell Lithium battery back-up with a 8 hour carry over of time of day
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet
WS2SQ/QC Specification sheetFeatures and Benefits
- Solar panel or DC power supply recharges 6 “AA” re-chargable Nickel Metal Hydride Batteries
- Can be programmed for automatic variable reserve, based on water usage history for
high efficiency - 2” top mount or side mount control valve suited for commercial/industrial applications
- Epoxy coated lead free brass valve body
- Economical stainless steel optional meter assembly
- Service flow rate of 473 lpm (28.4 m3/h) (125 gpm), backwash 322 lpm (19.3 m3/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Downflow regeneration/Upflow regeneration
- Coin Cell Lithium battery back-up with a 8 hour carry over of time of day
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specifications
| General | |
| Inlet/Outlet Fitting Connections | 2” Female NPT |
| Cycles | up to 6 |
| Valve Material | Lead free brass |
| Regeneration | Downflow |
| Operating Pressures | 20 - 125 psi |
| Operating Temperatures | 40° - 110° F |
| Options | Backwash Filter, Weather Cover |
| FLow rates | |
|
Service @15 psi drop includes meter |
125 gpm |
|
Backwash @25 psi drop includes bypass |
85 gpm |
| Cv Service | |
| Cv Backwash |
| Tank applications | |
| Water Softener | 12” – 48” diameter |
| Water Filter | 12” – 36” diameter |
| Meter | |
| Accuracy | ± 5% |
| Flow Rate Range | 1.5 – 150 gpm |
| Gallon Range | 20 – 1,500,000 gallons |
| Totalizer | 1 - 9,999,000 gallons |
| Dimensions & Weight | |
| Distributor Pilot Valve bodies with 2" Female NPT Inlet & Outlet | 2.375” OD (2" NPS) |
| Drain Line | 1.5” Female NPT |
|
Brine Line Adapters Inlcuded |
1”Male NPT elbow ¾” x 1” solvent weld elbow 1/2" OD Poly Tube Compression |
| Mounting Base | 4" - 8 UN 6” Flange or Side Mount |
| Height From Top Of Tank With 4" - 8 UN QC Base | 11.2” |
| Weight | 30 lbs. |
| Cycles of Operation Minutes |
WS2EE/QC | |
| Backwash 1st (upflow) | 1-95 Softener 1-95 Filter | 1-95 Softener 1-95 Filter |
| Regenerate Draw/Slow Rinse (downflow) | 1-180 | 1-180 |
| Backwash 2nd (upflow) | 1-95 | 1-95 Softener 1-95 Filter |
| Fast Rinse (downflow) | 1-95 Softener 1-95 Filter | 1-95 |
| Regenerant Refill in service with treated water |
0.1-99.0 or off | 0.1-99.0 |
| Service (downflow) | ||
| Hold (service) |
| Electrical Specifications All models excluding WS1.25SD |
US power supply | International power supply |
| Supply Voltage | 100VAC to 120VAC | 200VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
| Battery Specifications | WS2SD | WS2SP |
| Battery | 6 “D” cell alkaline batteries
"D" batteries not included | 6 AA nickel metal hydride batteries rechargeable |
| Charging | Batteries disposable when discharged | Amorphous silicon solar panels capable of three tilt angles DC power supply with 15VDC output 500mA |
