Compatible with the following typical concentration of regenerants or chemicals
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
Made in The USA
Models & features
Specification sheet
WS1TTCI Specification sheetFeatures and Benefits
- • Service flow 106 lpm (6.36 m3/h) (28 gpm), backwash flow 57 lpm (3.40 m3/h) (15 gpm) with meter and bypass installed
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability to 21″ diameter tanks
- Downflow/upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with a 24 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Soft/treated water regeneration
- Pre or Post soft/treated water regenerant refill
- Low salt alarm
- 24-hour clock
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet
WS1TTEE Specification sheetFeatures and Benefits
- Service flow 28 gpm, backwash flow 15 gpm with meter and bypass installed
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer), and Tank in Service Indication
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with a 8 hour carry over
- Backwash and brining ability to 21” diameter tanks
- Downflow or upflow brining regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Treated/Soft water post fill and regeneration cycles
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

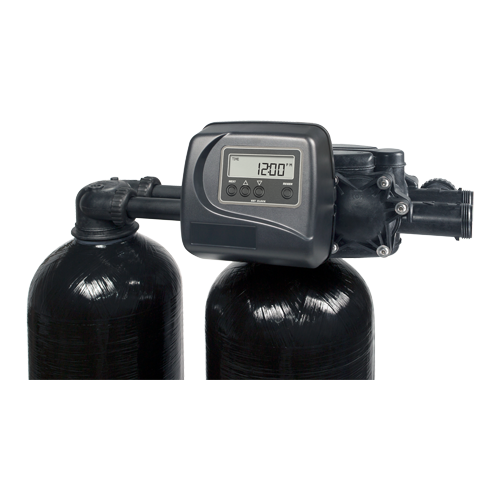

WS1TTEI Specification sheetFeatures and Benefits
- Service flow 106 lpm (6.36 m3/h) (28 gpm), backwash flow 57 lpm (3.40 m3/h) (15 gpm) with meter and bypass installed
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer), and Tank in Service Indication
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed
or pressure differential - Optional double backwash feature offers optimum regeneration, cleaning ability and
efficiency - Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with a 8 hour carry over
- Backwash and brining ability to 21” diameter tanks
- Downflow or upflow brining regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Treated/Soft water post fill and regeneration cycles
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

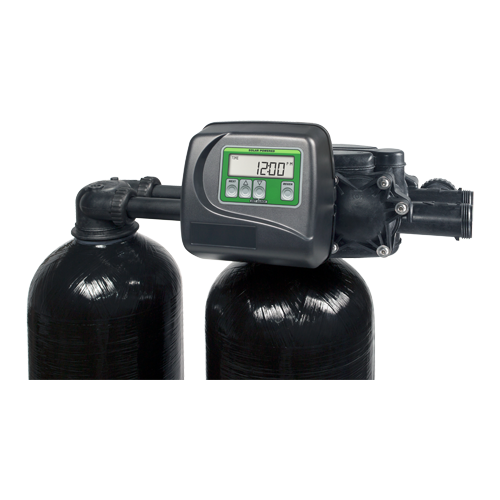

WS1TTSD/SP Specification sheetFeatures and Benefits
- Service flow 28 gpm, backwash flow 15 gpm with meter and bypass installed
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer), and Tank in Service Indication
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with a 8 hour carry over of time of day
- Backwash and brining ability to 21” diameter tanks
- Downflow regeneration/Upflow regeneration
- Post treated water regenerant refill
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specifications
| General | |
| Inlet/Outlet Fitting Connections | ¾" to 1.5” NPS |
| Cycles | up to 9 |
| Valve Material | Fiber Reinforced Composite |
| Regeneration | Downflow/Upflow |
| Operating Pressures | |
| Operating Temperatures | |
| Options |
| FLow rates | |
|
Service @15 psi drop |
106 lpm (6.36 m3/h) (28 gpm) |
|
Backwash @25 psi drop |
57 lpm (3.40 m3/h) (15 gpm) |
| Cv Service | 7.28 |
| Cv Backwash | 2.96 |
| Tank applications | |
| Water Softener | 6" - 21" Diameter |
| Water Filter | 6" - 21" Diameter |
| Meter | |
| Accuracy | . ± 5% |
| Flow Rate Range | 0.95 - 102 lpm |
| Gallon Range | 0.02 - 5,700 m3 |
| Totalizer | 1 m3 - 99,999 m3 |
| Dimensions & Weight | |
| Distributor Pilot | 1.050" OD Pipe (¾" NPS) |
| Drain Line | ¾" or 1" NPT |
|
Brine Line |
3/8" or ½" OD Poly Tube Compression |
| Mounting Base | 2 ½"- 8 NPSM |
| Height From Top Of Tank | 7 3/8" (187 mm) |
| Weight | 16 lbs (7.25 kg) |
| Cycles of Operation Minutes |
WS1TTCI |
| Backwash 1st (upflow) | 1 - 120 minutes |
| Regenerate Draw/Slow Rinse (downflow) | |
| Backwash 2nd (upflow) | |
| Fast Rinse (downflow) | |
| Regenerant Refill in service with treated water |
|
| Service (downflow) | |
| Hold (service) |
| Electrical Specifications All models excluding WS1.25SD |
U.S. | International |
| Supply Voltage | 100VAC to 120VAC | 200VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
| Battery Specifications |
| Battery |
| Charging |
