Certified to
NSF/ANSI/CAN 61 and 372.
Compatible with the following typical concentration of regenerants or chemicals
Sodium chloride, potassium chloride, chlorine and chloramines
Made in The USA
Models & features
Specification sheet

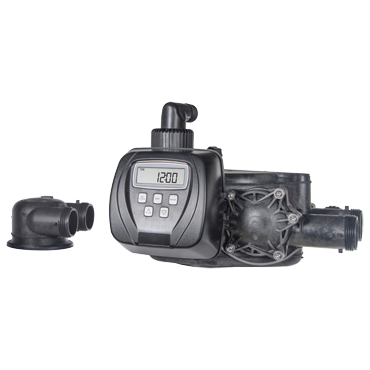

WS1.5TTCI Specification sheetFeatures and Benefits
- Service flow 204 lpm, (12.3m3/h), (54 gpm), backwash flow 83 lpm, (4.9 m3/h), (22 gpm), with built in meter on side port of valve body and fitting kit installed
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability for Softeners to 24″ diameter tanks, backwash filters to 18”
- Downflow/upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with an 24 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Soft/treated water regeneration
- Pre or post soft/treated water regenerant refill
- 24-hour clock
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet
WS1.5EE Specification sheetFeatures and Benefits
- Service flow 54 gpm, backwash flow 22 gpm with built in meter on side port of valve body and fitting kit installed
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed
or pressure differential - Fully programmable regeneration cycle times
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability for Softeners to 24″ diameter tanks, backwash filters to 18″
- Downflow/upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Soft/treated water regeneration
- Pre or post soft/treated water regenerant refill
- 12-hour clock
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

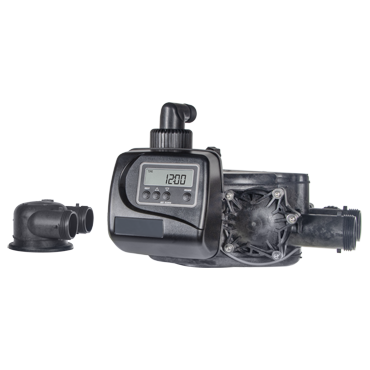

WS1.5TTEI Specification sheetFeatures and Benefits
- Service flow rate of 204 lpm (12.3 m3/h) (54 gpm), backwash flow 83 lpm, (4.9 m3/h), (22 gpm), with built in meter on side port of valve body and fitting kit installed
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability for Softeners to 24″ diameter tanks, backwash filters to 18”
- Downflow/upflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Soft/treated water regeneration
- Pre or post soft/treated water regenerant refill
- 12-hour clock
- Reliable and proven DC drives
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specifications
| General | |
| Inlet/Outlet Fitting Connections | 1.5” NPT and BSPT |
| Cycles | up to 9 |
| Valve Material | Fiber Reinforced Composite |
| Regeneration | Downflow/Upflow |
| Operating Pressures | |
| Operating Temperatures | |
| Options |
| FLow rates | |
|
Service @15 psi drop |
204 lpm, 12.3 m3/h, 54 gpm |
|
Backwash @25 psi drop |
83 lpm, 4.9 m3/h, 22 gpm |
| Cv Service | 13.9 |
| Cv Backwash | 4.4 |
| Tank applications | |
| Water Softener | 12” - 24” diameter |
| Water Filter | 12” - 18” diameter |
| Meter | |
| Accuracy | ± 5% |
| Flow Rate Range | 0.95 - 216 lpm |
| Gallon Range | 0.02 - 5,700 m3 |
| Totalizer | 1 m3 - 99,999 m3 |
| Dimensions & Weight | |
| Distributor Pilot | 50mm or 1.90" OD (1.5" NPS) |
| Drain Line | 1” Male Elbow BSPT or NPT |
|
Brine Line |
½” OD Poly Tube Compression |
| Mounting Base | 4” - 8 UN Thread |
| Height From Top Of Tank | 11” (279.4mm) |
| Weight | 8.16 kg |
| Cycles of Operation Minutes |
|
| Backwash 1st (upflow) | |
| Regenerate Draw/Slow Rinse (downflow) | |
| Backwash 2nd (upflow) | |
| Fast Rinse (downflow) | |
| Regenerant Refill in service with treated water |
|
| Service (downflow) | |
| Hold (service) |
| Electrical Specifications All models excluding WS1.25SD |
U.S. | International |
| Supply Voltage | 100VAC to 240VAC | 200VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
| Battery Specifications |
| Battery |
| Charging |
