Certified to
NSF/ANSI 44
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
IP54
IP55 with Weather Cover
Compatible with the following typical concentration of regenerants or chemicals
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
Made in The USA
Models & features
Specification sheet

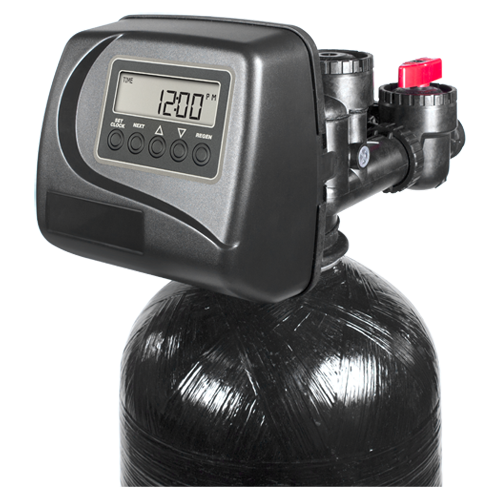

WS1.25 (WS1) Specification sheetFeatures and Benefits
- Solid state microprocessor with easy access front panel settings
- Three modes of operation; meter immediate, meter delayed, or time clock delayed
- Double backwash feature offers optimum regeneration, cleaning ability, and efficiency
- Capable of 36 pre-programmed regeneration cycles based on control valve setting
- Days override feature; 1 – 28 days available
- Backwash and brining ability to 21” diameter tanks
- Downflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Pre or Post treated water regenerant refill
- Reliable and proven DC drive
Shown with optional bypass
Specification sheet

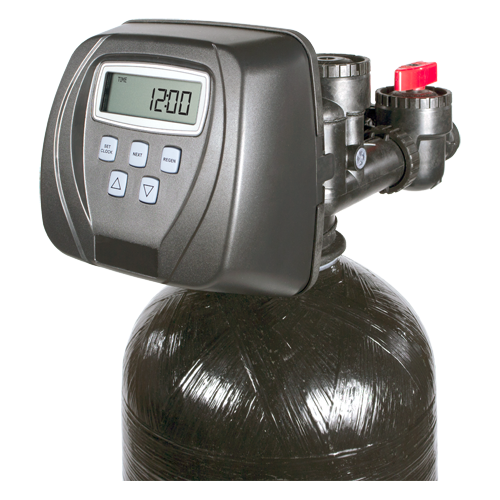

WS1.25CI Specification sheetFeatures and Benefits
- Solid state microprocessor with easy access front panel settings
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or
pressure differential - Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1 – 28 days available
- Backwash and brining ability to 21″ diameter tanks
- Downflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with a 24 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Pre or Post treated water regenerant refill
- Mixing valve option available
- Low salt alarm
- 24-hour clock
- Reliable and proven DC drive
Specification sheet
WS1.25CS Specification sheetFeatures and Benefits
- Solid state microprocessor with easy access front panel settings
- Three modes of operation; meter immediate, meter delayed, or time clock delayed
- Double backwash feature offers optimum regeneration, cleaning ability and efficiency
- 73 selectable pre-programmed regeneration cycles
- Days override feature; 1 – 28 days available
- Backwash and brining ability to 21″ diameter tanks
- Downflow regeneration
- Stores system configuration and operation data in nonvolatile memory
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Pre or Post treated water regenerant refill
- Reliable and proven DC drive
Shown with optional bypass
Specification sheet

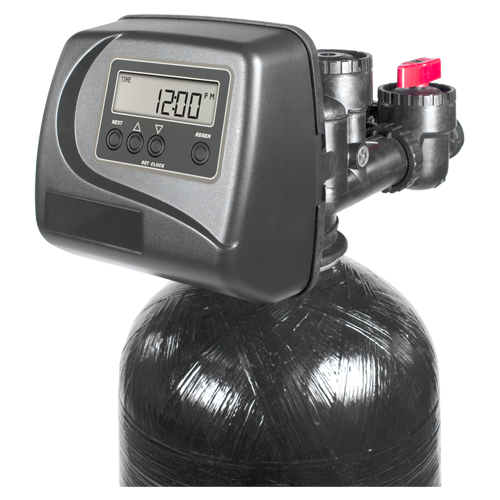

WS1.25EE Specification sheetFeatures and Benefits
- Solid state microprocessor with easy access front panel settings
- Service flow rate of 34 gpm, backwash 32 gpm
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Backwash and brining ability to 21” diameter tanks
- Downflow or upflow brining regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Post treated water regenerant refill
- Reliable and proven DC drive
Shown with optional bypass
Specification sheet
WS1.25EI Specification sheetFeatures and Benefits
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Backwash and brining ability to 21” diameter tanks
- Downflow or upflow brining regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Post treated water regenerant refill
- 24 Hour Clock
- Mixing Valve option available
- Reliable and proven DC drive
Specification sheet
WS1.25SD/SP Specification sheetFeatures and Benefits
- Solar panel or DC power supply recharges 6 “AA” re-chargable Nickel Metal Hydride Batteries
- Can be programmed for automatic variable reserve, based on water usage history for high efficiency
- Solid state microprocessor with easy access front panel settings
- Service flow rate of 34 gpm, backwash 32 gpm
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with 8 hour carry over of time of day
- Backwash and brining ability to 21” diameter tanks
- Downflow regeneration/Upflow regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Control valve design provides optimum service and backwash rates
- Post treated water regenerant refill
- Reliable and proven DC drive
Shown with optional bypass
Specification sheet
WS1.25SQ Specification sheetFeatures and Benefits
- Solar panel or DC power supply recharges 6 “AA” re-chargable Nickel Metal Hydride Batteries
- Can be programmed for automatic variable reserve, based on water usage history for high efficiency
- 1.5″ top mount control valve suited for mid-size commercial/industrial applications
- Economical stainless steel optional meter assembly
- Service flow rate of 129 lpm (7.72 m3/h) (34 gpm), backwash 121 lpm (7.26 m3/h) (32 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or
pressure differential - Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/ slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with 8 hour carry over of time of day
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Post treated water regenerant refill
- Reliable and proven DC drive
Specification sheet

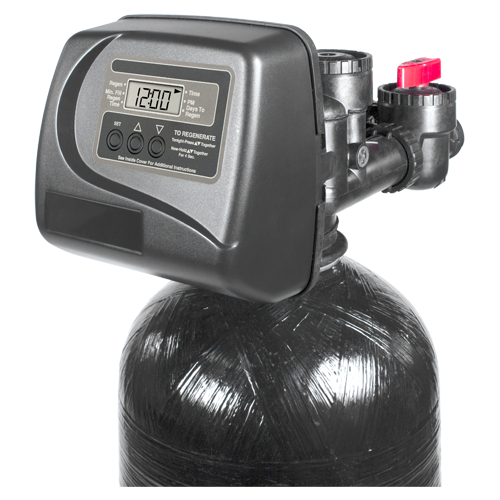

WS1.25TC Specification sheetFeatures and Benefits
- More informative 4 digit LCD Display with Status Indicators
- Solid state microprocessor with easy access front panel settings
- Service flow rate of 34 gpm, backwash 32 gpm
- Backwash and brining ability to 21” diameter tanks
- Front panel display for time of day, days until next regeneration
- Days between regeneration feature: 1–99 days standard; 7-day optional
- Double backwash feature offers optimum regeneration, cleaning ability and efficiency
10 selectable pre-programmed regeneration cycles - Coin Cell Lithium battery back-up with a 8 hour carry over
- Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats
- Level VI 15-volt output DC power supply provides safe and easy installation
- Patented one piece expanding seal spacer stack assembly
- Patented linearly reciprocating piston operation
- Post treated water regenerant refill
- Reliable and proven DC drive
Shown with optional bypass
Specifications
| General | |
| Inlet/Outlet Fitting Connections | 1” - 1.25” NPT
¾” - 1.5” Sweat ¾” - 1.5” Solvent ¾” - 1” SharkBite® ¾” - 1” John Guest® |
| Cycles | up to 6 |
| Valve Material | Fiber Reinforced Composite |
| Regeneration | Downflow |
| Operating Pressures | 20 psi – 125 psi |
| Operating Temperatures | 40º – 110º F |
| Options | Backwash Filter, Bypass, Weather Cover |
| FLow rates | 34 gpm |
|
Service @15 psi drop includes meter, bypass, and 1.25" fitting kit |
34 gpm |
|
Backwash @25 psi drop includes bypass |
32 gpm Acquired by use of external drain line flow control |
| Cv Service | 8.8 |
| Cv Backwash | 6.4 |
| Tank applications | |
| Water Softener | 6” – 21” diameter |
| Water Filter | 6” – 24” diameter Filter tank size calculated @ 10 gpm of backwash per square foot of bed area |
| Meter | |
| Accuracy | ± 5% |
| Flow Rate Range | 0.25 – 34 gpm |
| Gallon Range | 20 – 50,000 gallons |
| Totalizer | 1000 - 9,999,000 gallons |
| Dimensions & Weight | |
| Distributor Pilot | 1.32" OD Pipe (1" NPS) or 32mm OD |
| Drain Line | 3/4” or 1” NPT |
|
Brine Line |
3/8” or 1/2” OD Poly Tube |
| Mounting Base | 2 1/2” - 8 NPSM |
| Height From Top Of Tank | 7 3/8” |
| Weight | 4.5 lbs. |
| Cycles of Operation Minutes |
WS1.25 (WS1) | WS1.25CS | WS1.25EE | WS1.25SD | WS1.25SP | WS1.25TC |
| Backwash 1st (upflow) | 6 - 12 | 6 - 16 | 1-95
Softener 1-95 Filter | 1-95
Softener 1-95 Filter | 1-95
Softener 1-95 Filter | 3 - 12 |
| Regenerate Draw/Slow Rinse (downflow) | 45 - 75 | 45 - 75 | 1-180 | 1-180 | 1-180 | 50 - 70 |
| Backwash 2nd (upflow) | 3 - 12 | 3 - 12 | 1-95 | 1-95
Softener 1-95 Filter Rinse | 1-95
Softener 1-95 Filter Rinse | 3 - 12 |
| Fast Rinse (downflow) | 3 - 8 | 3 - 10 | 1-95
Softener 1-95 Filter | 1-95 | 1-95 | 3 - 8 |
| Regenerant Refill in service with treated water |
As Programmed | As Programmed | 0.1-99.0 or OFF | 0.1-99.0 | 0.1-99.0 | As Programmed |
| Service (downflow) | ||||||
| Hold (service) |
| Electrical Specifications All models excluding WS1.25SD |
US Power Supply | International Power Supply |
| Supply Voltage | 100VAC to 120VAC | 200VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
| Battery Specifications | WS1.25SD | WS1.25SP |
| Battery | 6 “D” cell alkaline batteries (not included) | 6 AA nickel metal hydride batteries rechargeable |
| Charging | Batteries disposable when discharged | Amorphous silicon solar panels capable of three tilt angles, DC power supply with 15VDC output 500mA |
