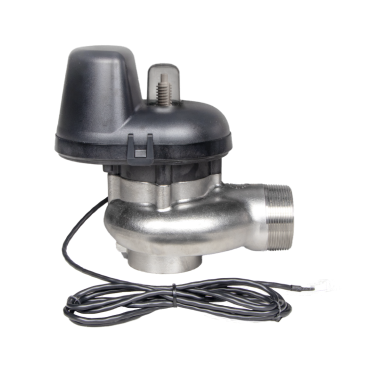

2” Stainless Steel No Hard Water Bypass Valve

Features and Benefits

• 2.0” NPT or 2.0” BSPT
• Durable 316 stainless steel casting
• Electro polished for improving corrosion resistance, leaving a lasting bright finish
• Hydraulically balanced piston valve
• Allows for WS2.0 Valves to be used in multi-tank systems
• Full 2.0” ports with minimal pressure loss
• Provides for no raw water bypass during regeneration
• Provides choices of treated or non-treated water regeneration for WS2H
• Proven and reliable Clack DC drive assembly
• Low voltage drive assembly controlled by valve’s circuit board
• Flow from male inlet to female outlet has a 2.6 PSI drop at 125 GPM
• Operating Pressures:
  20 PSI Minimum
  125 PSI Maximum
• Operating Temperatures:
  40°F Minimum
  110°F Maximum
