Certified to
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
Compatible with the following typical concentrations of regenerants or chemicals:
Sodium chloride, potassium chloride, potassium permanganate, sodium bisulfite, chlorine and chloramines
Made in The USA
Models & features
Specification sheet

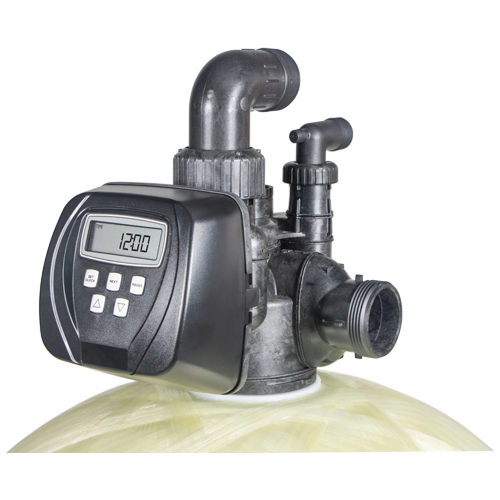

WS2PCI Specification sheetFeatures and Benefits
- 2” top mount control valve suited for commercial/industrial applications
- Glass filled composite valve body
- Economical glass filled composite optional meter assembly
- Service flow rate of 359 lpm (21.6 m3/h) (95 gpm), backwash 332 lpm (19.3 m3/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Program in ppm, French degrees, German degrees, or cubic meters
- Fully programmable regeneration cycle sequence (maximum 9)
- Programmable regeneration cycle times
- Days override feature; 1-28 days available
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

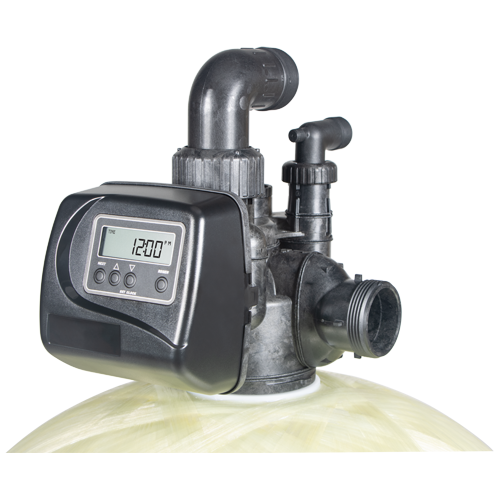

WS2PEE Specification sheetFeatures and Benefits
- 2” top mount control valve suited for commercial/industrial applications
- Glass filled composite valve body
- Economical glass filled composite optional meter assembly
- Service flow rate of 95 gpm, backwash 85 gpm
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specification sheet

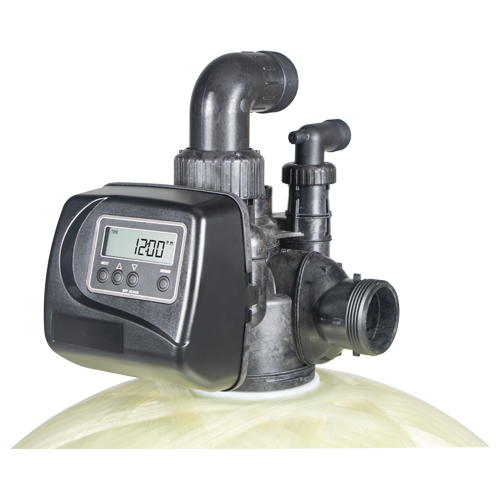

WS2PEI Specification sheetFeatures and Benefits
- 2” top mount control valve suited for commercial/industrial applications
- Glass filled composite valve body
- Economical glass filled composite optional meter assembly
- Service flow rate of 359 lpm (21.6 m3/h) (95 gpm), backwash 332 lpm (19.3 m3/h) (85 gpm)
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or
pressure differential - Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining or upflow brining, slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Level VI 15-volt output DC power supply provides safe and easy installation
- Post treated water regenerant refill
- 24 Hour Clock
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
Specifications
| General | |
| Inlet/Outlet Fitting Connections | 2" QC fitting optional straight or 90° |
| Cycles | Up to 9 |
| Valve Material | Glass filled composite |
| Regeneration | Downflow or Upflow |
| Operating Pressures | |
| Operating Temperatures | |
| Options |
| FLow rates | |
|
Service @15 psi drop |
359 lpm (21.6 m3 /h) (95 gpm) |
|
Backwash @25 psi drop |
322 lpm (19.3 m3 /h) (85 gpm) |
| Cv Service | 24.5 |
| Cv Backwash | 17.0 |
| Tank applications | |
| Water Softener | 12" - 36" diameter |
| Water Filter | 12" - 36" diameter |
| Meter | |
| Accuracy | ± 5% |
| Flow Rate Range | 5.7 - 568 lpm (1.5 - 150 gpm) |
| Gallon Range | 0.02 - 5,700 m3 |
| Totalizer | 1 - 99,999 m3 (264 - 26,417,000 gallons) |
| Dimensions & Weight | |
| Distributor Pilot | 50mm OD 1.90” OD (1.5" NPS) |
| Drain Line | 2” Male BSPT 90° QC elbow |
|
Brine Line |
1" Male NPT elbow, ¾" x 1" solvent weld elbow, and 1⁄2" OD Poly Tube Compression |
| Mounting Base | 4" - 8 UN |
| Height From Top Of Tank | 317.5 mm (12.5") |
| Weight | 4.98 Kg (11 lb) |
| Cycles of Operation Minutes |
WS2PCI | |
| Backwash 1st (upflow) | 1 - 120 min | |
| Regenerate Draw/Slow Rinse (downflow) | 1 - 120 min | |
| Backwash 2nd (upflow) | ||
| Fast Rinse (downflow) | 1 - 120 min | |
| Regenerant Refill in service with treated water |
||
| Service (downflow) | ||
| Hold (service) |
| Electrical Specifications All models excluding WS1.25SD |
US Power Supply | International Power Supply |
| Supply Voltage | 100VAC to 240VAC | 100VAC to 240VAC |
| Supply Frequency | 50/60 Hz | 50/60 Hz |
| Output Voltage | 15VDC | 15VDC |
| Output Current | 500 mA | 500 mA |
| Battery Specifications | |
| Battery | |
| Charging |
