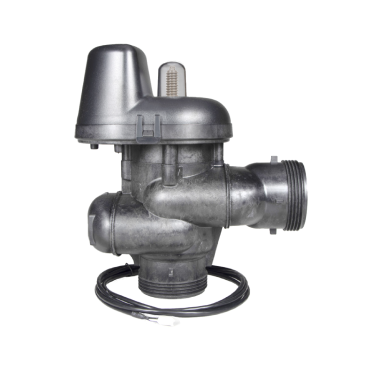

2” Glass Filled Composite No Hard Water Bypass Valve

Features and Benefits

• Fiber Reinforced Composite Material
• Allows for outlet shutoff and isolation
• Full assortment of WS2P fitting kits available
• Hydraulically balanced piston valve
• Provides no raw untreaded water bypass during a regeneration
• Proven and reliable Clack DC drive assembly
• Low voltage drive controlled by valve’s circuit board
• Flow from inlet to outlet 125 gpm at 3.5 psi drop (Cv 67.2)
• Operating Pressures:
  20 psi (1.38 bar) Minimum
  125 psi (8.6 bar) Maximum
• Operating Temperatures:
  40°F (4.4°C) Minimum
  110°F (43.3°) Maximum
