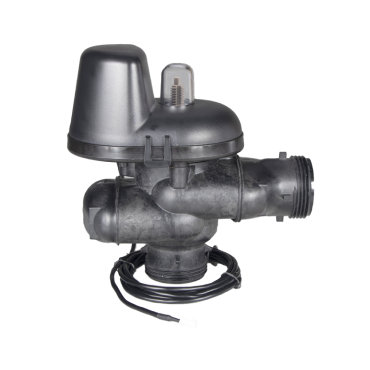

1.5” Glass Filled Composite No Hard Water Bypass Valve

Features and Benefits

• Fiber Reinforced Composite Material
• Utilizes WS1.5P Control Valve Fittings
• Hydraulically balanced piston valve
• Provides no raw water bypass during regeneration
• Provides choices of treated or non-treated water regeneration
• Proven and reliable Clack DC drive assembly
• Low voltage drive assembly controlled by valve’s circuit board
• Flow from female inlet to outlet has (Cv 32.19) has a 3.47 PSI drop at 60 GPM
• Operating Pressures:
  20 PSI Minimum
  125 PSI Maximum
• Operating Temperatures:
  40°F Minimum
  WS1.5P Fitting Assembly QC to NPT or BSPT 110°F Maximum
